Solar Modules
M10R 144 Series Solar Module
N-type TOPCon bifacial solar modules with 144 half-cut cells, from 570 to 600 Wp and up to 23.2% efficiency. Dual-glass, framed modules made in India by Atal Solar.
Supply detail
Grades, packing and trade terms
Grades & varieties
- N-type TOPCon, bifacial, dual glass
- 144 half-cut cells with 16 busbars
- 7 models from 570 to 600 Wp in 5 W steps
Key features
- Zero LID (no light-induced degradation)
- PID resistant and UV resistant
- Better low-light performance
- Bifacial gain of up to 30%
- Withstands 5400 Pa snow load and 2400 Pa wind load
- Multi-busbar design for better crack tolerance
- AI-guided and automated optical inspection on every module
| HS code | 8541.43 (photovoltaic cells assembled in modules or made up into panels) |
|---|---|
| Minimum order quantity | 1 x 40 ft container |
Photos

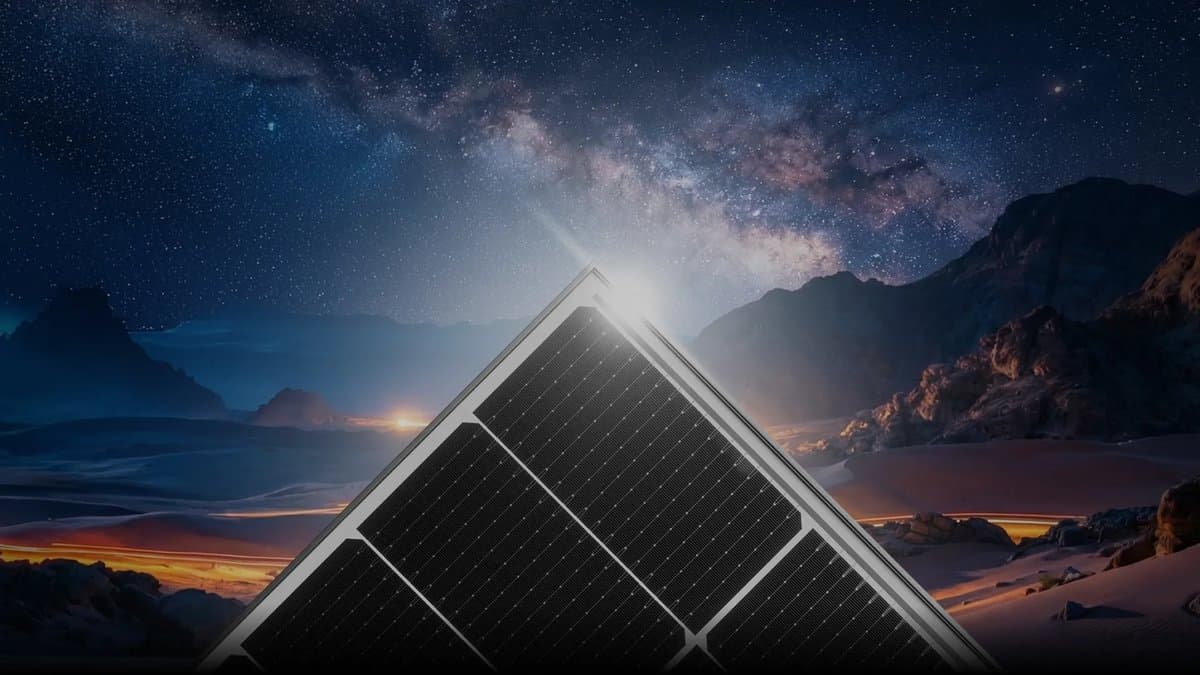

M10R 144 Series Solar Module
Data
Technical data by model
Electrical data at standard test conditions
| Pmax (Wp) | Voc (V) | Isc (A) | Vmp (V) | Imp (A) | Efficiency |
|---|---|---|---|---|---|
| 600 | 53.40 | 13.77 | 45.95 | 13.06 | 23.23% |
| 595 | 53.20 | 13.72 | 45.75 | 13.01 | 23.03% |
| 590 | 53.00 | 13.67 | 45.55 | 12.96 | 22.84% |
| 585 | 52.80 | 13.62 | 45.35 | 12.91 | 22.65% |
| 580 | 52.60 | 13.57 | 45.15 | 12.85 | 22.45% |
| 575 | 52.40 | 13.52 | 44.95 | 12.80 | 22.26% |
| 570 | 52.20 | 13.47 | 44.74 | 12.75 | 22.07% |
Standard test conditions: 1000 W/m² irradiance, air mass 1.5, 25 °C cell temperature. Measurement uncertainty ±3%.
Bifacial output by backside power gain
| Pmax (Wp) | +10% | +15% | +20% | +25% | +30% |
|---|---|---|---|---|---|
| 600 | 660 | 690 | 720 | 750 | 780 |
| 595 | 654.5 | 684.25 | 714 | 743.75 | 773.5 |
| 590 | 649 | 678.5 | 708 | 737.5 | 767 |
| 585 | 643.5 | 672.75 | 702 | 731.25 | 760.5 |
| 580 | 638 | 667 | 696 | 725 | 754 |
| 575 | 632.5 | 661.25 | 690 | 718.75 | 747.5 |
| 570 | 627 | 655.5 | 684 | 712.5 | 741 |
Power output with 10% to 30% extra power from the rear side. Bifacial gain depends on the power plant design and location.
Technical data
Specifications
Values are confirmed per shipment against the agreed contract specification.
| Power range | 570 to 600 Wp |
|---|---|
| Module efficiency | up to 23.2% |
| Cell type | N-type TOPCon bifacial, 182.2 x 183.75 mm (M10R) |
| Cells | 144 half-cut cells (12x6 || 12x6), 16 busbars |
| Dimensions | 2278 x 1134 x 35 mm |
| Weight | 33 kg approx. |
| Origin | India (Mitana, Tankara, Gujarat) |
| Front glass | 2 mm low iron HTAR semi-tempered |
| Back glass | 2 mm low iron printed semi-tempered |
| Frame | Anodised aluminium alloy |
| Junction box | IP68, weatherproof PPO |
| Cable and connector | 4 mm² cable, 400 mm (custom length available); IP68, MC4 compatible |
| Maximum system voltage | 1500 V |
| Series fuse rating | 30 A |
| Bifaciality factor | 80 ± 10% |
| Operating temperature | -40 to 85 °C |
| Nominal operating cell temperature | 45 ± 2 °C |
| Temperature coefficient of power (Pmax) | -0.30 %/°C |
| Temperature coefficient of voltage (Voc) | -0.26 %/°C |
| Temperature coefficient of current (Isc) | +0.046 %/°C |
| Snow and wind load | 5400 Pa and 2400 Pa |
| Product warranty | 12 years |
| Performance warranty | 30 years linear. Power loss below 1.0% in year 1 and below 0.40% a year in years 2 to 30 |
| Ratings | Application class A, safety class II, fire class C (Type 1) |
| BIS licence | R-72016136, valid until 28 April 2028 |
| Licensed standards | IS 14286 (Part 1/Sec 1): 2023 / IEC 61215-1-1: 2021; IS/IEC 61730-1: 2023 and 61730-2: 2023 |
| ALMM | Listed on MNRE's ALMM List-I (September 2026) |
Enquire about M10R 144 Series Solar Module
Send us the grade, quantity, destination port and Incoterm. We will come back with packing options and an indicative quotation.
